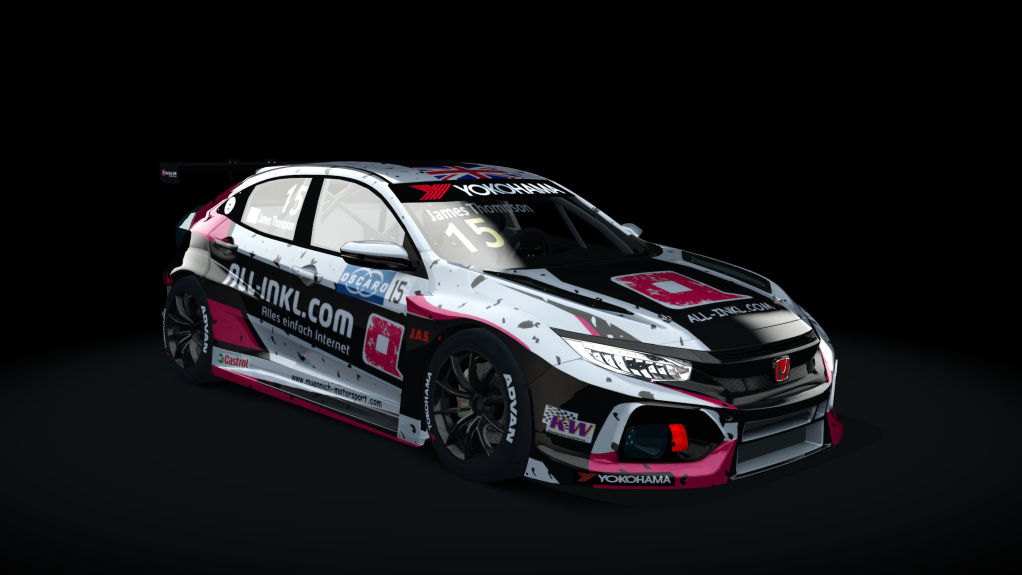

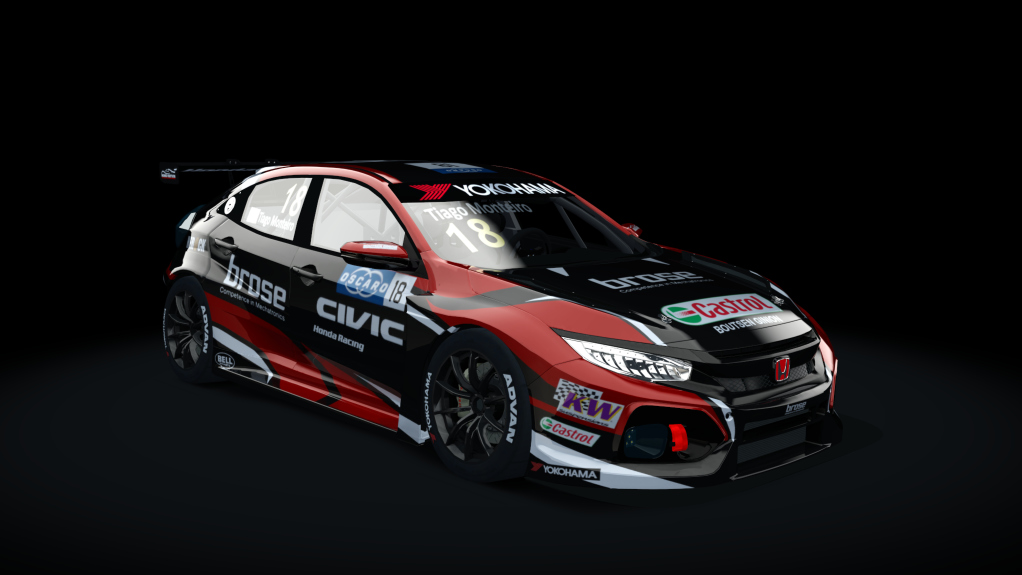

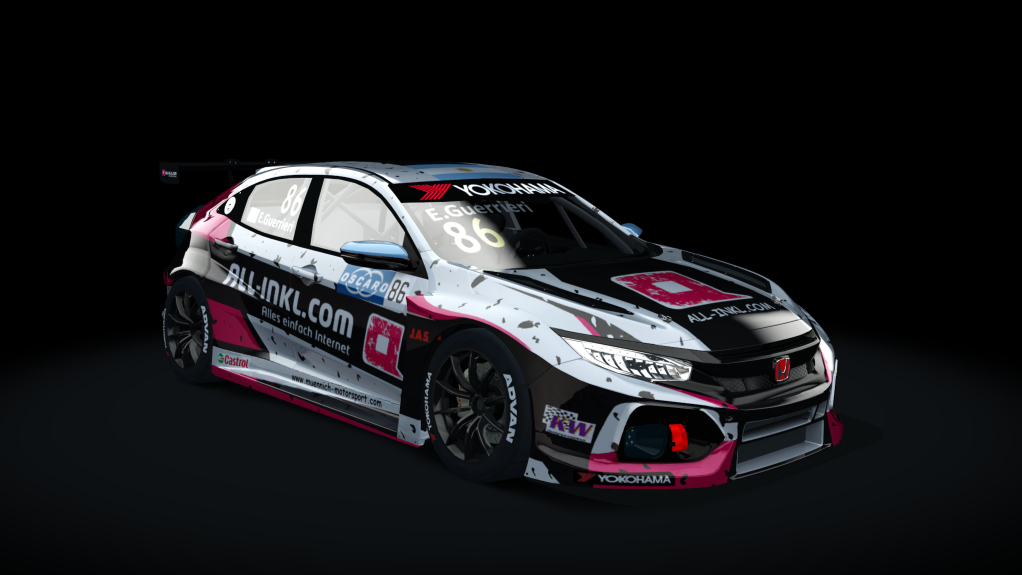

Honda Civic Type R FK7/FK8 TCR
Model
Honda Civic FK7 Hatchback, 5 doors
Engine
Turbocharged 4-cylinder in line, transversally installed
Distribution: two overhead camshafts, 16 valves
Displacement: 1998.2 cc
Bore x stroke: 86 x 86 mm
Max. output 340hp @ 6200 rpm
Max. torque: 420nm @ 3800 rpm
Lubrication: wet sump
Transmission
Front-wheel-drive
Gearbox: Sadev or Xtrac 6-speed sequential with paddle shift
Clutch: JAS twin-disc sinter-metallic
Differential: mechanical limited slip differential
Chassis
Front suspension: McPherson strut, coil springs, gas-filled dampers, anti-roll bar
Rear suspension: multi-link axle, coil springs, gas-filled dampers, anti-roll bar
Steering: electrical power assisted rack and pinion
Brakes
Dual circuit hydraulic system
Front brakes: 6-piston calipers, 380 mm steel ventilated discs
Rear brakes: 2-piston calipers, 260 mm steel discs
Dimensions
Length: 4549 mm
Width: 1950 mm
Wheelbase: 2700 mm
Minimum weight: 1265 kg including the driver
BOP
Engine performance level: 97.5%
Ballast: 0kg
Ride height: 80mm
There are no setups for this car.
This car has been used in 0 sessions.
